Our signal processing equipment is categorized into the following types:
1. splitter
2. Matrix Switcher
3. Video Processors
4. Network Decoding Matrix

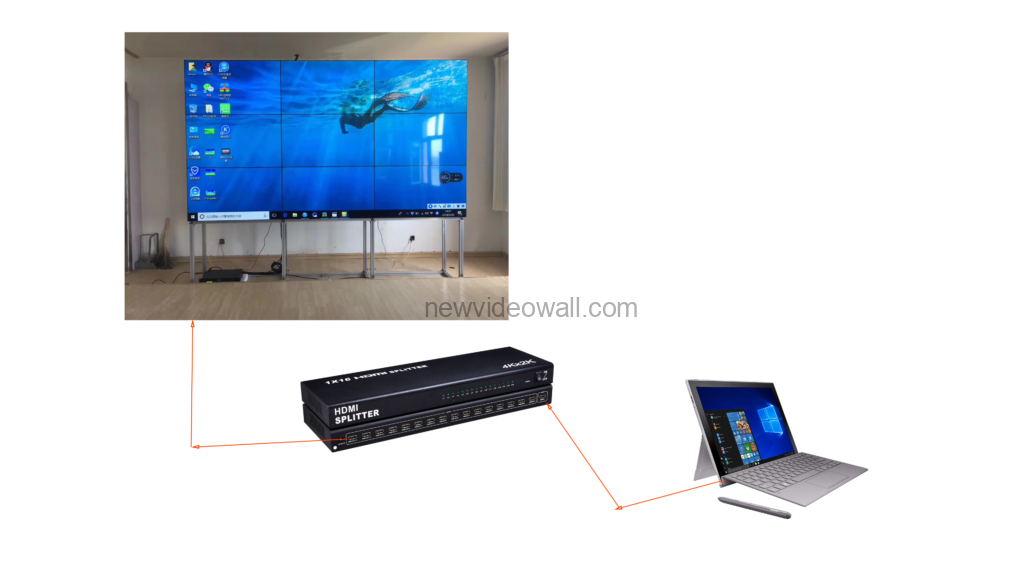

1. Application of Splitter in Video Wall Splicing
When One single input signal source (typically a computer) needs to be displayed on a video wall, only an HDMI signal splitter is required.
2. Matrix Switcher
When multiple signal inputs need to be distributed to different screens, or when one of the inputs needs to be spliced into a single display, a matrix signal switcher is used. This device ensures that each screen displays only one signal

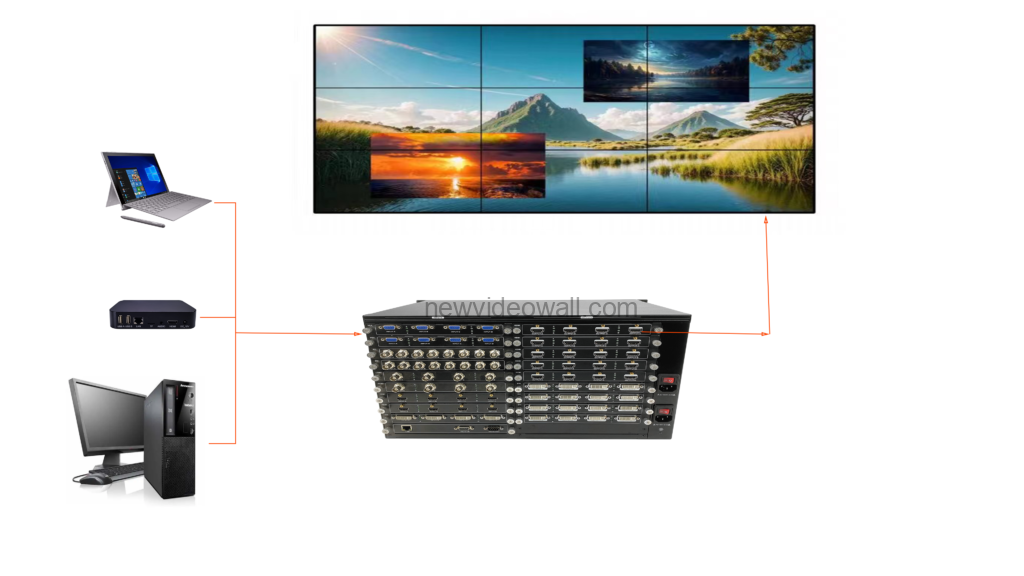

3. Video Processors
When there are multiple signal inputs, one signal can be displayed across the entire screen, while the others are shown in floating windows with adjustable size and position. In this scenario, we use a multi-screen image processor.
Alternatively, if multiple signals need to be displayed on a single screen simultaneously, the multi-screen image processor can manage this by allowing each screen to show multiple signals at once. Although the cost is higher, it provides better visual results and a more convenient layout, making it ideal for command and broadcast centers.

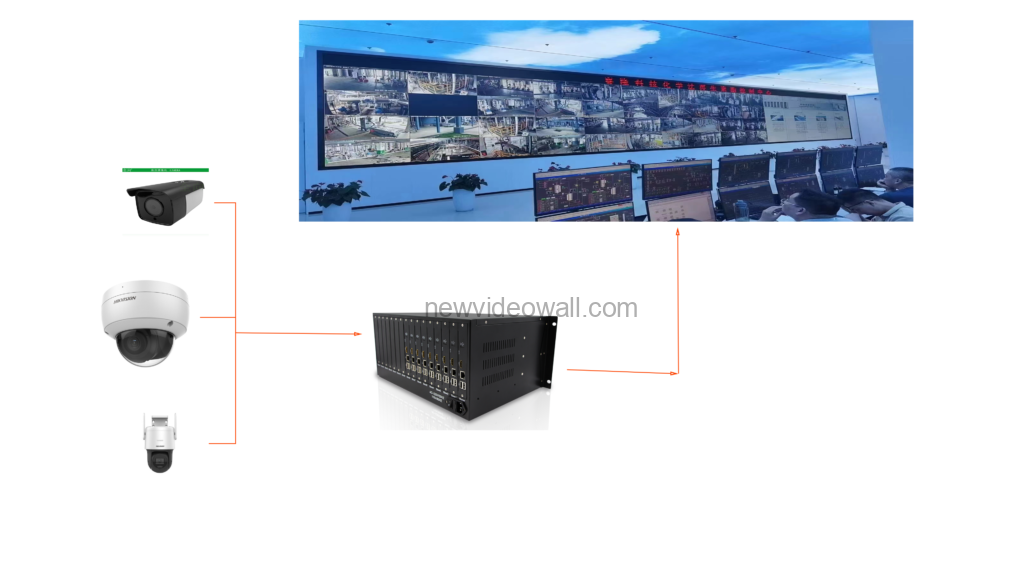

4. Network Decoding Matrix
When the input signal is from a network camera and has not yet been decoded, we need to read it from the network signal of the switch. In this case, a network decoding matrix is required, which is commonly used in monitoring rooms.
For a more detailed solution, please contact DS TECH. We will provide you with the optimal solution.
