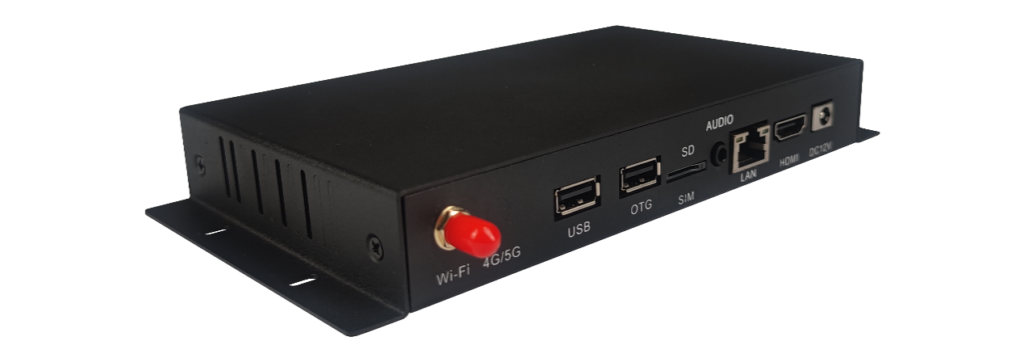

DS-3568-BOX is a well-built all-in-one LCD Android smart play box, using Rockchip RK3568 quad-core chip solution, equipped with Android 11.0 system, main frequency up to 2.0GHz, with super performance. Using Mali-G52 GPU, support 4K/H.265 hard decoding, 1080P video decoding. Supports U-disk, TF card, Wi-Fi, network port and other interfaces, making the product more versatile, and is widely used in intelligent control fields such as advertising machines, interactive all-in-one machines, security, medical care, transportation, finance, industrial control, etc.
Features
- High performance. RK3568 chip adopts quad-core ARM Cortex-A55 architecture, the main frequency can be as high as 2.0GHz, capable of playing various formats of high-definition video screens, and capable of handling complex interactive operations.
- High stability. The RK3568 Android integrated board adds its own unique technology to the hardware and software to ensure the stability of the product, so that the final product can be unattended for 7*24 hours.

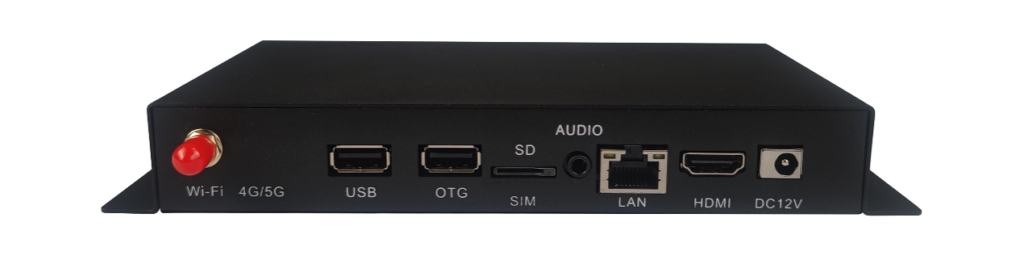

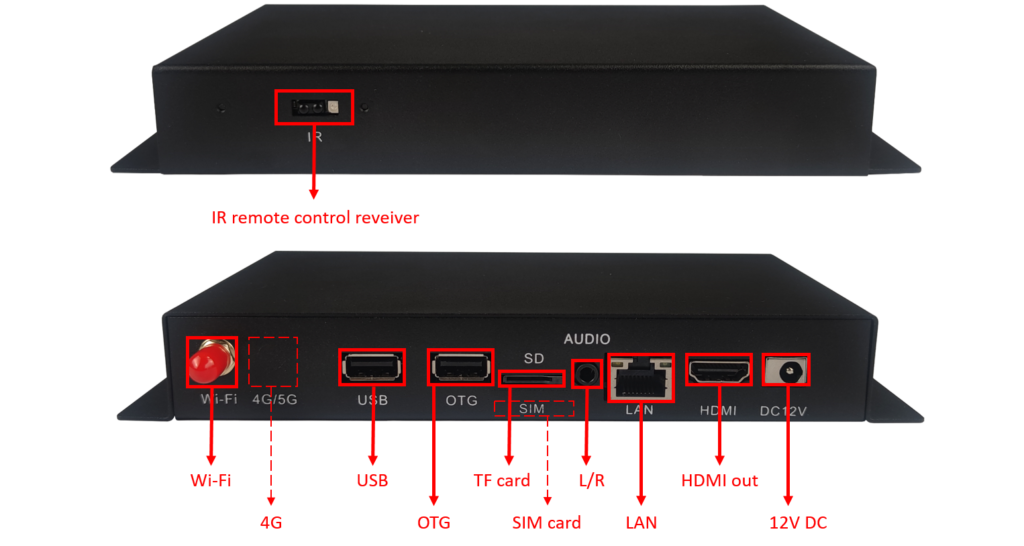

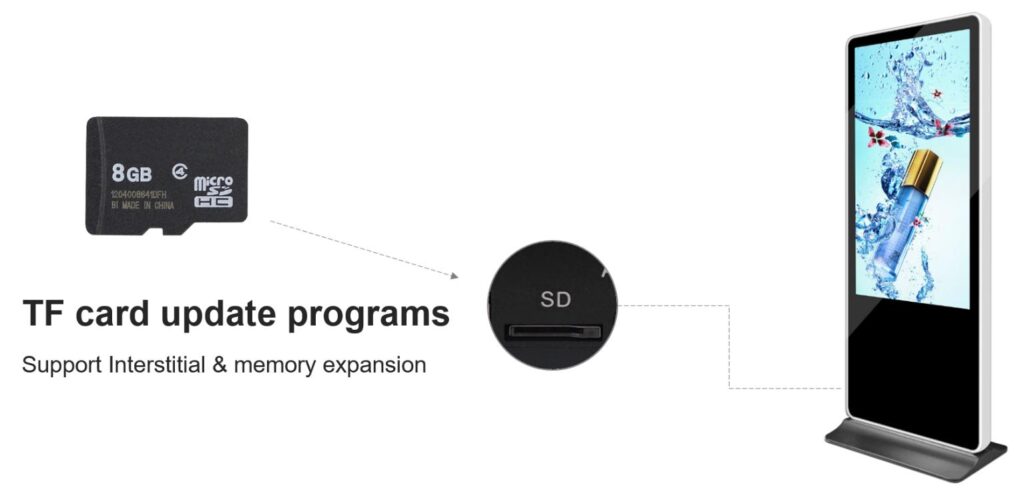

- High integration. Integrates functions such as Ethernet, Wi-Fi, TF expansion card, USB expansion port, HDMI interface output, etc., which greatly simplifies the installation of the whole machine.
High definition. Supports LCD display screens with HDMI interface, and supports cropping screens of various sizes and resolutions.
1. Hardware Parameters
| Hardware Parameters | |
| CPU | RK3568, Quad-core, the highest frequency 2.0GHz |
| GPU | Mali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1 |
| RAM/ Storage | Standard 2G+16G, 4G+32G, 8G+64G, optional 2G+32G, 8G+128G |

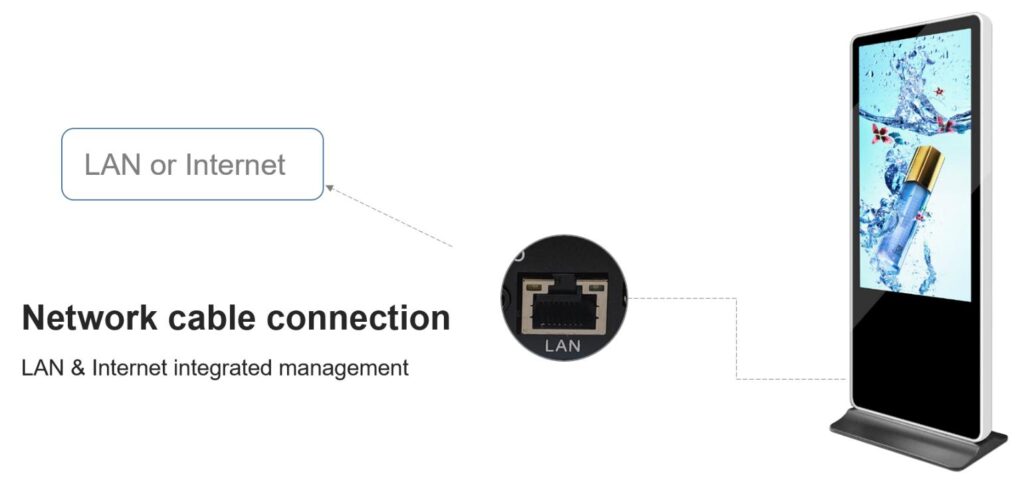

| Connection | Support RJ45 100M Ethernet port and Ethernet.Equipped with 2.4GHz Wi-Fi (support optional 5GHz) and Wi-Fi 802.11b/ g/ n protocol. |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual rotation |

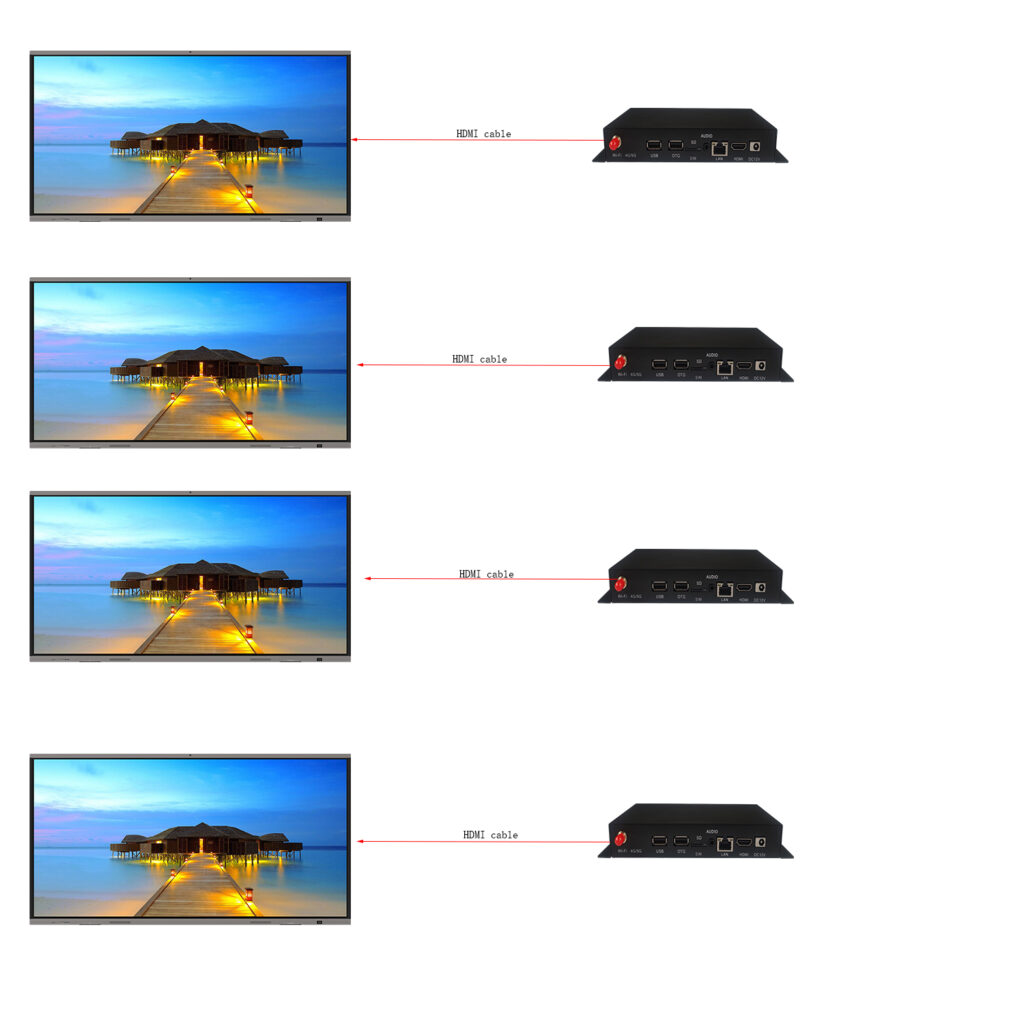

| Display interface | 1*HDMI interface output |
| Audio | Support standard left and right channel line output |
| RTC | Built-in real-time clock function |
| USB | 1*USB 3.0 HOST, 1*USB 3.0 or OTG |
| LED | 1 * power status LED (green), 1 * system LED (green, blinking by default) |
| Button | 1 * Recovery button |
| Power Adapter | Input: AC100-240V.50-60Hz, output: DC12V 1.5A(Requires that the surge voltage is less than 18V and the ripple voltage is less than 100mV) |
| Storage Humid | 10%～90％ RH |
| Storage Temp | -40℃~70℃ |
| Work Temp | -20℃~70℃ |
2. Software Parameters
| Software Parameters | |
| Operating system | Android 11.0 |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP, etc. |
| Video | Support H.264, VP8, MAV, WMV, AVS, H.263, MPEG4 and other video formats |
| Image | Support various picture formats such as JPG, BMP, PNG |
| System comes with application software | APK installer, email, calculator, browser, recorder, calendar, settings, clock, video player, search, contacts, gallery, download, camera, music, explorer, etc. |
| Language | support multi-language |
| Typewriting | Standard Android keyboard, optional third-party input method |
| System Management | The original ecological Android system, open root permissions, can be customized product development |

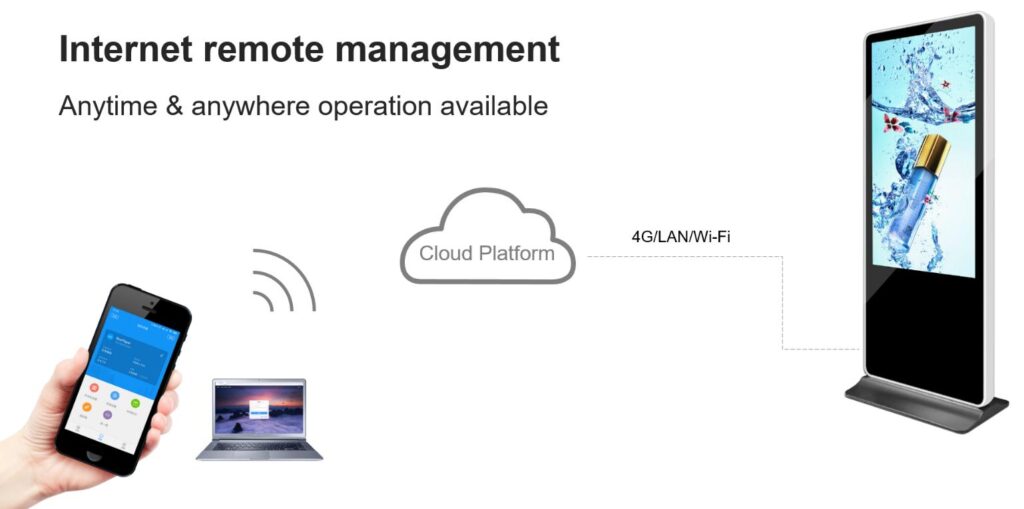

| Real-time remote monitoring, self-recovery of system crash, 7 * 24 hours unattended | |

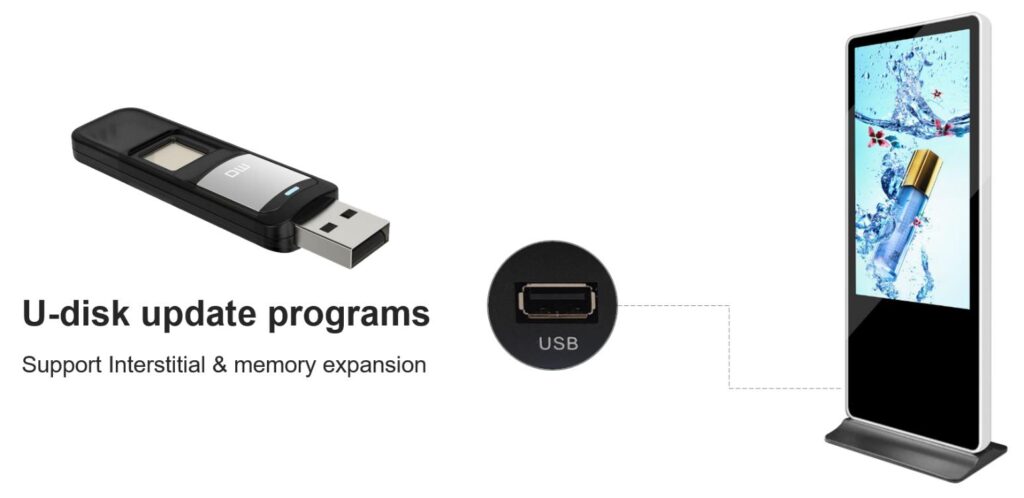

| Support OTA remote upgrade; support U-disk upgrade | |
| Support boot animation definition | |
| Support server / standalone mode switch | |
| Support Wi-Fi hotspot | |
| System watchdog | Support software watchdog |
